Main Features
l It adopts the closed loop sensor loading, the electronic control system, has 10 levels test force.
l The machine has high precision, high repeatability and stability, simple operation, high price ratio, etc.
Compared with electronic brinell, it also has another feature, as follows:

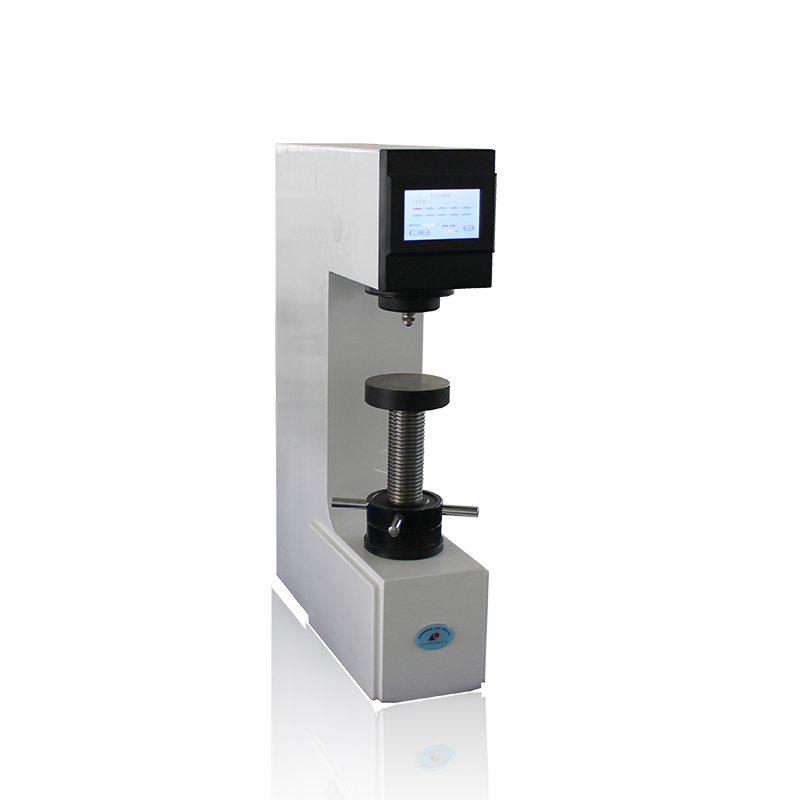

l Touch screen
Compared with the digital tube of traditional electronic brinell, Touch screen interface is simple, without training to operate.
l Hardness calculation is built in the tester.
After the hardness measurement, inputting the value of D1 and D2, then automatically calculate hardness value without looking up table.
Technical Specifications
| Model | HB-3000S |
| Brinell Scale | HBW2.5/62.5 HBW2.5/187.5 HBW5/125 HBW5/750 HBW10/100、HBW10/1500 HBW10/3000 HBW10/250 HBW10/500 HBW10/1000 |
| Testing Force | 62.5kgf(612.9N)100kgf(980.7N)125kgf(1226N)187.5kgf(1839N)250kgf(2452N)500kgf(4903N)750kgf(7355N)1000kgf(8907N)1500kgf(14710N)3000kgf(29420N) |
| Max Height of Specimen | 230mm |
| Min Measuring Unit | 0.005mm |
| dwell time | 0~60s |
| Hardness testing Range | 8~650HBW |
| Magnification of Microscope | 20X |
| Carried Standard | EN, ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2，JJG150 |
| Distance of Indenter to outer wall | 160mm |
| Indication of Hardness Value | automatic calculation |
| Power supply | AC220+5%,50~60Hz |
| Overall Dimension (mm) | 550*210*750mm |
| Net Weight | About 90kg |
| Name | Quantity | Name | Quantity |
| Measurement microscope | 1 | Diameter 2.5、5、10mm Hard Alloy Steel Ball Indenter | Each 1 |
| Standard Blocks | 3 | Large, Medium, “V” shaped Testing Table | Each 1 |
| Power Cable | 1 | Product certificate, Printer Manual | Each 1 |
