Materials, instruments, working principles, standards, training, maintenance, and global support.
Optical Emission Spectrometer (OES) is a fast quantitative analysis instrument for analyzing ferrous metals and non-ferrous metals. It is widely used in metallurgy, machinery and other industrial sectors.

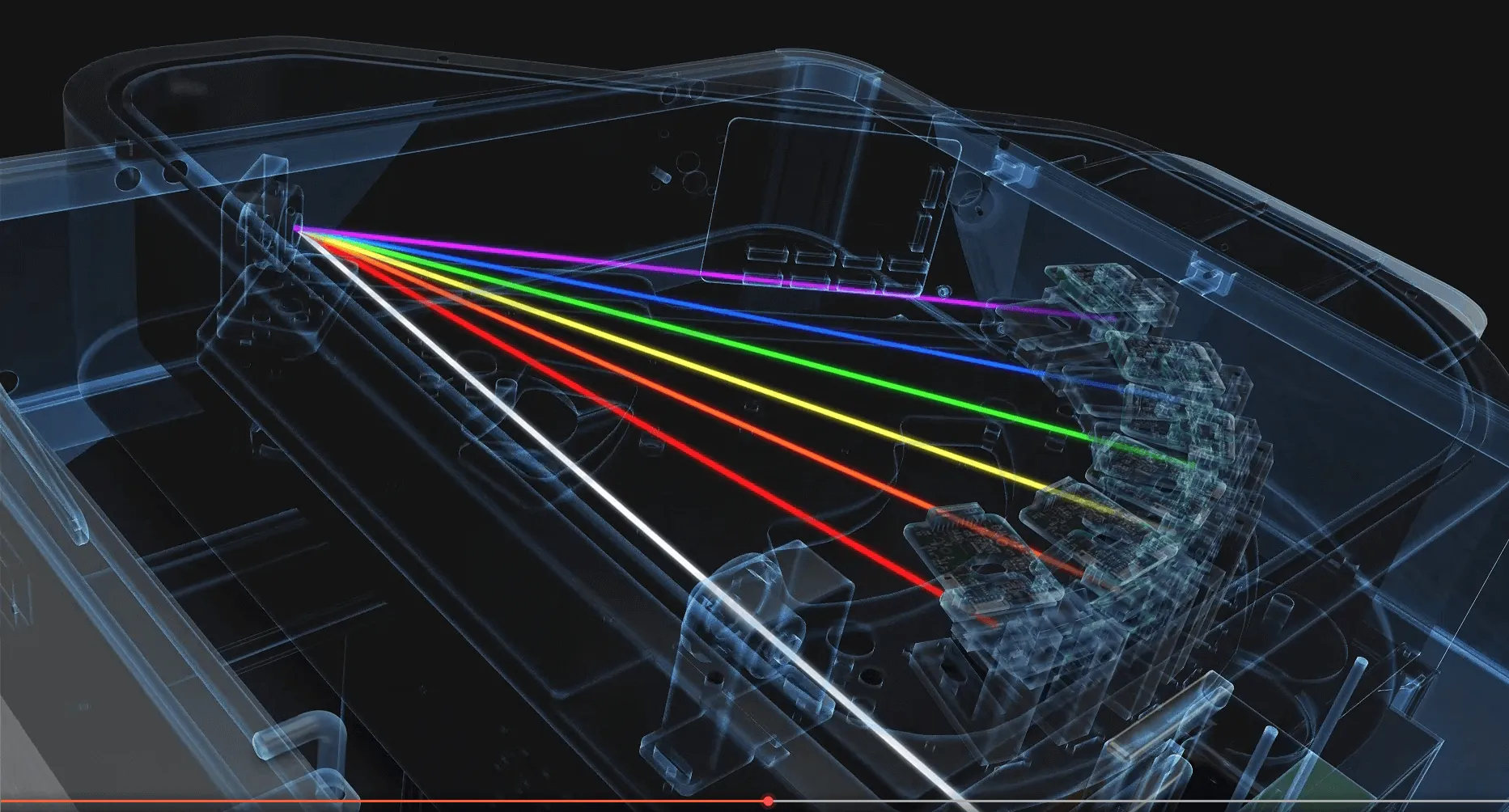

The spark optical emission spectrometer uses arc (or spark) high temperature to vaporize and excite elements in the sample to emit characteristic wavelengths. After the light is split by a grating, it becomes a spectrum arranged by wavelength. The optical signals are converted into electrical signals, digitized, and then processed to output element results.
Below is a quick comparison for common selection scenarios.
| Handheld LIBS alloy spectrometer | Handheld XRF alloy spectrometer | |
| Safety | Without any ionizing radiation, 3B eye safety laser. | X photoionizing radiation, safety protection should be paid attention to when using, and the operator should go to work after strict training. |
| Detection speed | The equipment is ready to use and easy to operate. The alloy grade and element content can be obtained in 1 second. | The equipment needs a long time to warm up, the alloy grade can be displayed after 1~3 seconds, and the element content can be displayed after 15~30 seconds. |
| Use and maintenance costs | There are no vulnerable parts, the service life of core components exceeds one million tests, and the maintenance cost in normal use is extremely low. | X-ray tubes and fluorescence detectors are both consumable and vulnerable parts, which are expensive to replace. |
| Analyzable elements | Covering almost all metal elements, it can be used for grade and composition identification of various heavy and light alloys. | Mainly for the identification of heavy metal elements, not as good as stainless steel and alloy steel, but cannot test alloys such as aluminum alloy. |
Jiebo Instrument analyzers are designed for testing a wide range of metallic materials, including carbon steel, alloy steel, cast iron, aluminum alloys, copper alloys, nickel alloys, and other non-ferrous metals. They are widely used in metallurgy, foundry, machinery manufacturing, and quality inspection laboratories.
Optical Emission Spectrometers (OES) are mainly used for multi-element analysis of metals, while Carbon Sulfur Analyzers focus specifically on determining carbon and sulfur content. In many quality control applications, both instruments are used together to achieve complete chemical composition analysis.
Yes. Jiebo Instrument equipment is designed for both laboratory and industrial environments, offering stable performance, fast analysis speed, and high repeatability. Many models are widely used in steel plants, foundries, and manufacturing workshops for on-site quality control.
Yes. Jiebo Instrument provides installation guidance, operation training, and technical support. Training can be conducted remotely or on-site depending on customer requirements and project scale.
Calibration frequency depends on usage intensity and testing requirements. Generally, routine calibration is recommended periodically, while daily maintenance mainly includes cleaning, checking consumables, and system inspection. Detailed maintenance guidelines are provided with each instrument.
Jiebo Instrument products are designed in accordance with common international standards such as ASTM, ISO, and GB standards, ensuring reliable and comparable test results for global customers.
Yes. Jiebo Instrument offers customized solutions based on specific materials, testing ranges, and application scenarios. Hardware configuration and software functions can be adjusted according to customer requirements.
Yes. Jiebo Instrument serves customers worldwide and provides international shipping, remote technical support, and export documentation. The company has experience supporting customers across Asia, Europe, the Middle East, Africa, and other regions.
