Main Technical Parameters
| Analysis Matrix |
Fe, Al, Cu, Zn, Ni, Mg, Ti, Sn, Pb etc. |
| Wavelength Range |
140~680nm |
| Focal Length |
401mm |
| Detector |
High performance CMOS array (4096 pixels) |
| Light Source Type |
Digital high energy pre-burn technology |
| Discharge Frequency |
100-1000Hz |
| Discharge Current |
Max 400A |
| Working Power Supply |
AC220V 50/60Hz 400W |
| Overall Dimension |
65*53*33cm |
| Net Weight |
45Kg |
| Analysis Time |
Depend on the type of sample, generally about 20s |
| Electrode Type |
Tungsten Jet Electrode |
| Analysis Gap |
4mm |
| Argon Flow |
Spark flow rate about 3.5L/min, standby flow rate about 0.1L/min |
| Other Function |
Optical chamber temperature, automatic pressure control by software, communication monitoring |
Precision Redefined with Advanced Optical Technology

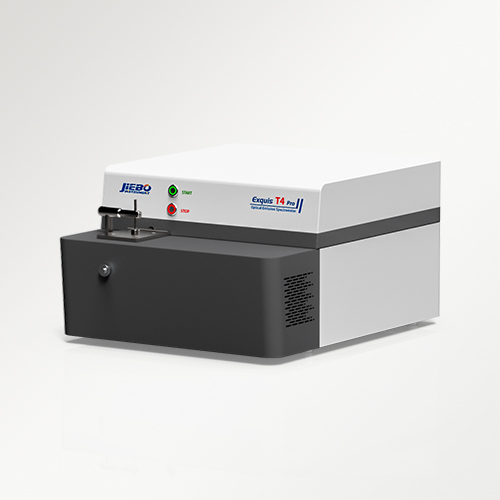

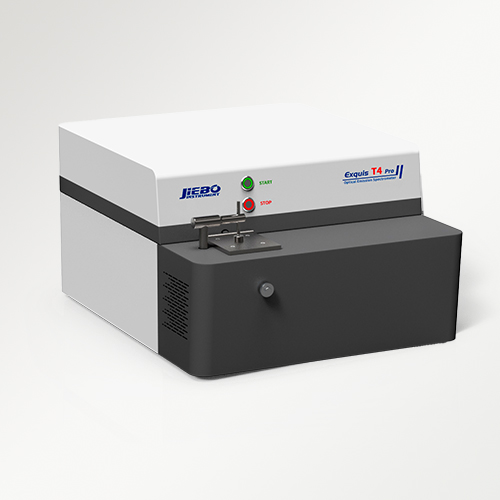

The Exquis T4 Pro Full Spectrum Optical Emission Spectrometer is engineered to deliver unparalleled precision in metal fabrication and processing. With its sealed-cycle optical chamber technology, this optical spectrometer ensures accurate detection of essential elements such as Fe, Al, Cu, Zn, Ni, Mg, Ti, Sn, and Pb. The high-performance CMOS array detector, boasting 4096 pixels, captures a wavelength range of 140~680nm, providing comprehensive spectral analysis. This makes it a preferred choice among spectrometer manufacturers seeking reliable and efficient solutions. The digital high-energy pre-burn technology enhances measurement accuracy, making the Exquis T4 Pro a vital asset for industries demanding precision and efficiency.
Built for Precision and Performance
Designed with operational reliability in mind, the Exquis T4 Pro offers robust performance with its tungsten jet electrode and a discharge frequency range of 100-1000Hz. The xrf spectrometer capabilities ensure that even the most challenging samples are analyzed with precision, typically within 20 seconds. The spectrometer's discharge current peaks at 400A, supported by an AC220V 50/60Hz 400W power supply, ensuring consistent performance. This x ray fluorescence spectrometer is equipped with automatic pressure control and communication monitoring, providing users with a seamless experience. Its compact design, measuring 655333cm and weighing 45Kg, makes it an ideal choice for laboratories and industrial settings where space and efficiency are paramount.
Scalable Design to Meet Growing Demand
The Exquis T4 Pro is not just about immediate performance; it's built to adapt and scale with your growing needs. Its argon flow system, with a spark flow rate of about 3.5L/min and standby flow rate of 0.1L/min, ensures optimal operation under varying conditions. This x ray spectrometer is designed to meet the evolving demands of metal processing industries, offering scalability and adaptability for future applications. As a leader among spectrometer manufacturers, Wuxi Jiebo Instrument Technology Co., Ltd. provides a product that not only meets current industrial standards but is also prepared for future advancements. The Exquis T4 Pro is a testament to the company's commitment to innovation and quality, ensuring that your investment is both future-proof and reliable.
Product Advantages
1.Unmatched Precision in Element Detection
The Exquis T4 Pro optical spectrometer excels in detecting essential elements like Fe, Al, Cu, Zn, Ni, Mg, Ti, Sn, and Pb with its sealed-cycle optical chamber technology. This ensures high accuracy, making it a top choice for spectrometer manufacturers seeking reliable solutions for metal fabrication and processing.
2.Robust Performance for Industrial Applications
Equipped with a tungsten jet electrode and a discharge frequency range of 100-1000Hz, this xrf spectrometer delivers precise analysis even for challenging samples. Its discharge current peaks at 400A, supported by a 400W power supply, ensuring consistent performance in demanding industrial settings.
3.Comprehensive Spectral Analysis
The high-performance CMOS array detector with 4096 pixels captures a wavelength range of 140~680nm, providing detailed spectral analysis. This feature makes the Exquis T4 Pro x ray fluorescence spectrometer an invaluable tool for industries requiring comprehensive data.
4.Compact and Efficient Design
With dimensions of 655333cm and a weight of 45Kg, this x ray spectrometer is ideal for laboratories where space is limited. Its automatic pressure control and communication monitoring offer a seamless user experience, enhancing operational efficiency.
5.Scalable for Future Needs
The Exquis T4 Pro's argon flow system adapts to varying conditions, ensuring optimal operation. As a leader among spectrometer manufacturers, it offers scalability and adaptability, making it a future-proof investment for evolving metal processing industries.
